Key Features
- Officially licensed highly-detailed clipless Corvette Stingray Body
- Innovative clipless body mounts for easy removal of the body and stunning scale appearance
- High-performance waterproof XL-5⢠electronic speed control
- TQ 2.4GHz 2-channel radio system
- Powerful Titan⢠12T 550 modified motor with internal cooling fan
- High-torque waterproof Traxxas #2075 steering servo
- Low center of gravity (Low CG) chassis
- High performance suspension
- Adjustable battery hold down for easy, secure battery installation
- Efficient direct all-wheel drive with sealed silicone-filled differential
- Replica Corvette Stingray black chrome wheels and high-performance tires with long-wearing compound
- Fully adjustable oil-filled Ultra Shocks⢠with X-ring technology
- Rubber-sealed ball bearings
What's in the Box
- 1x Traxxas Corvette Stingray, Ready-To-Race Model with Titan 12T 550 Motor
- 1x XL-5 Waterproof Electronic Speed Control
- 1x TQ 2.4GHz 2-Channel Radio System
- 1x Quick Start Guide
- 1x High Quality Maintenance Tools
- 1x Optional High Speed Pinion Gear
Needed to Complete
- 4x AA batteries (for the transmitter)
- 1x Battery - Traxxas 7-Cell NiMH âflat packâ or 2-Cell LiPo Battery
- 1x Charger - Traxxas EZ-Peak Plus (model #2970) recommended
Product Description

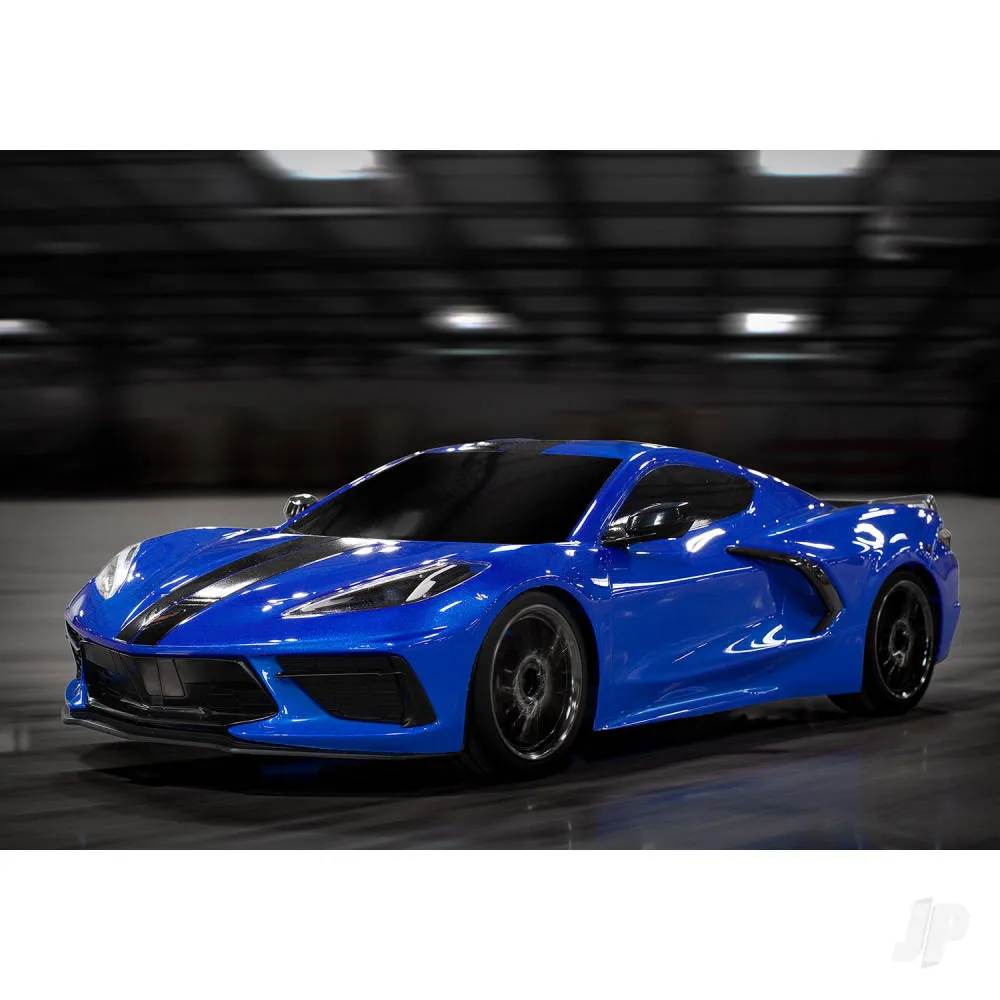

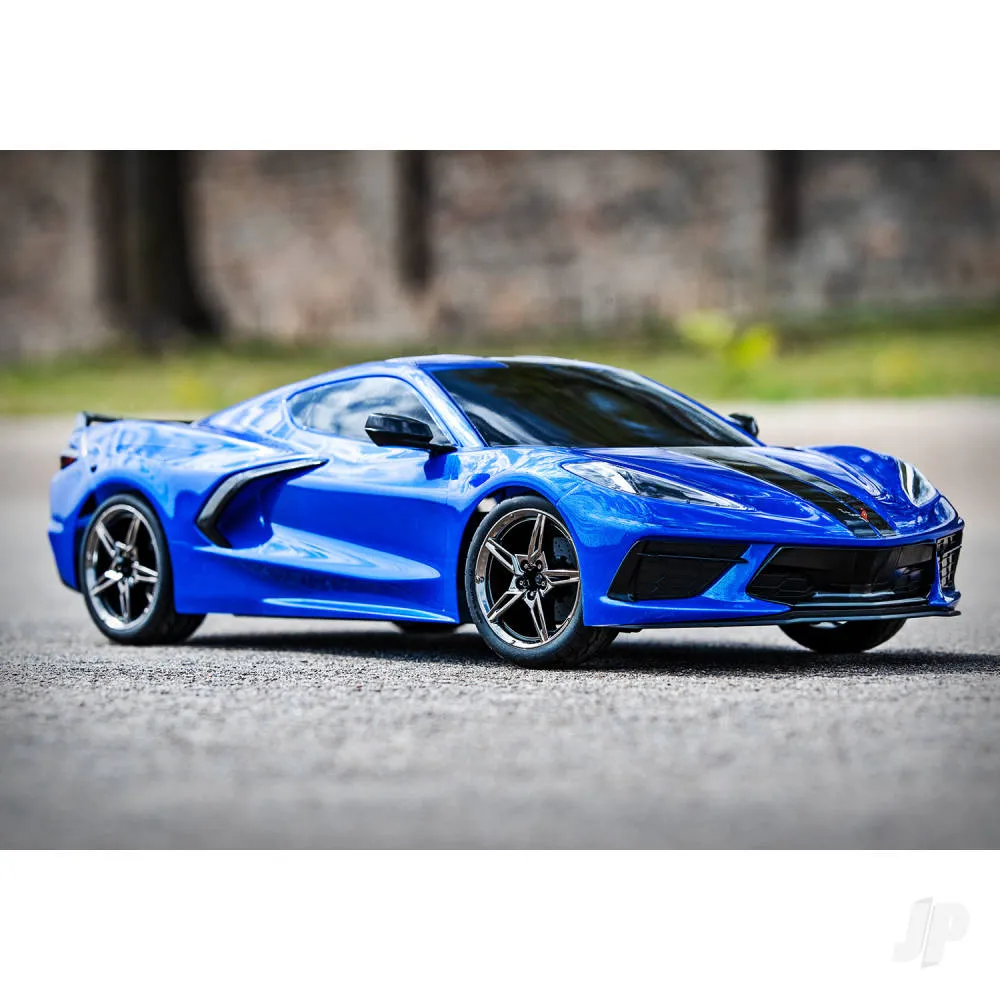

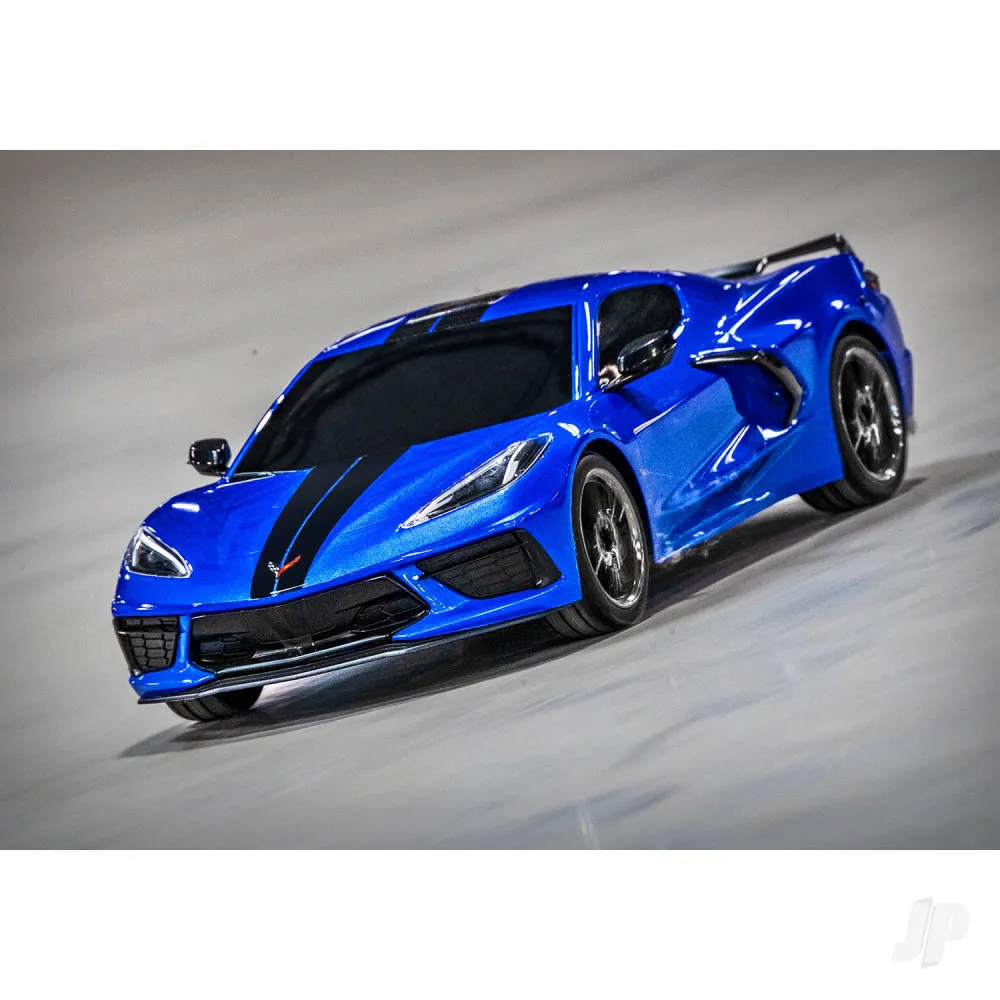

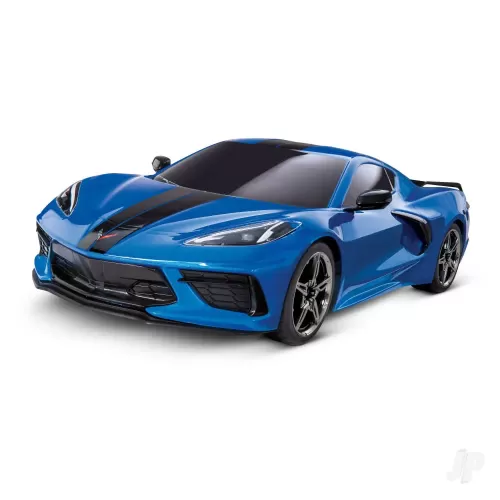

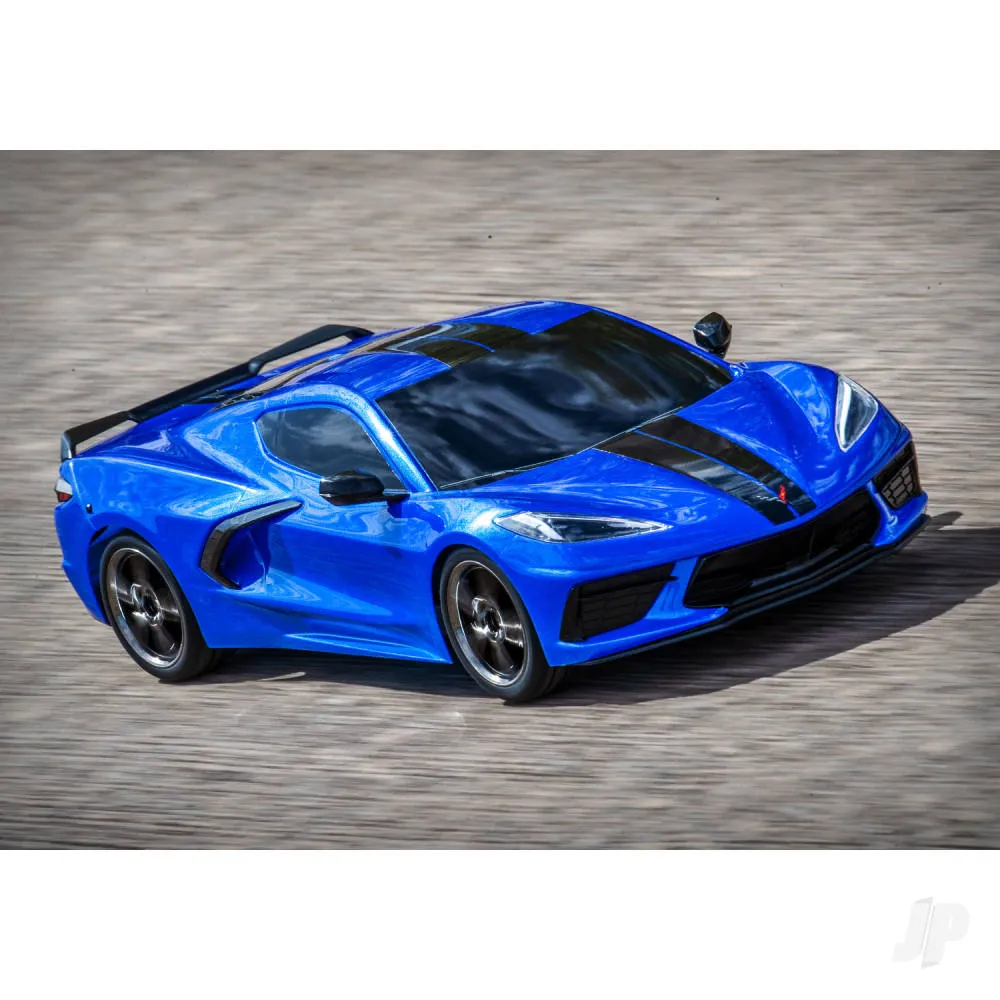

The name is synonymous with American sportscar excellence: Corvette. Traxxas delivers the spirit and excitement of the all-new mid-engine Corvette in exacting detail, for a replica that performs as realistically as it looks. The faceted, jet-fighter body and its massive side intakes are duplicated to the millimetre. The simulated LT2 V8 is visible beneath the rear hatch. Authentic black-chrome wheels fill the fenders. Beautiful to display—with Traxxas performance that demands you to drive.
INNOVATION - The Traxxas 4-Tec 3.0 AWD Chassis is the perfect complement to the Corvette Stingray. Insightful design touches and precision engineering, combined with a low-CG, mid-motor configuration and fully adjustable suspension, make the Traxxas Stingray as exciting and capable as the real thing.
The Corvette Stingray on Traxxas.com
ULTIMATE REALISM

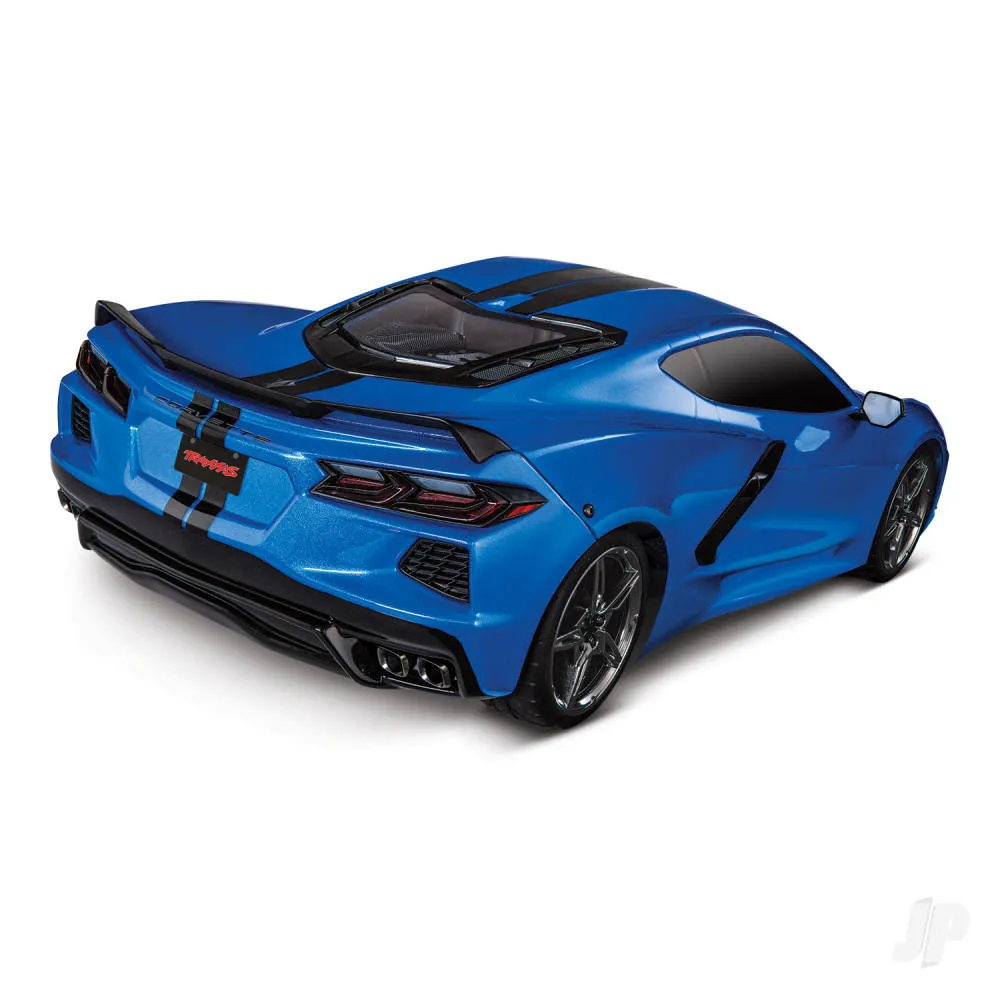

Every detail of the Stingray is faithfully captured. Beneath the rear “glass,” the engine bay shows off a realistic recreation of the 16-valve V8. Replica wheels shine in stealthy black chrome, and wide tires fill out the rear fender wheels to match the full-size machine’s muscular stance.

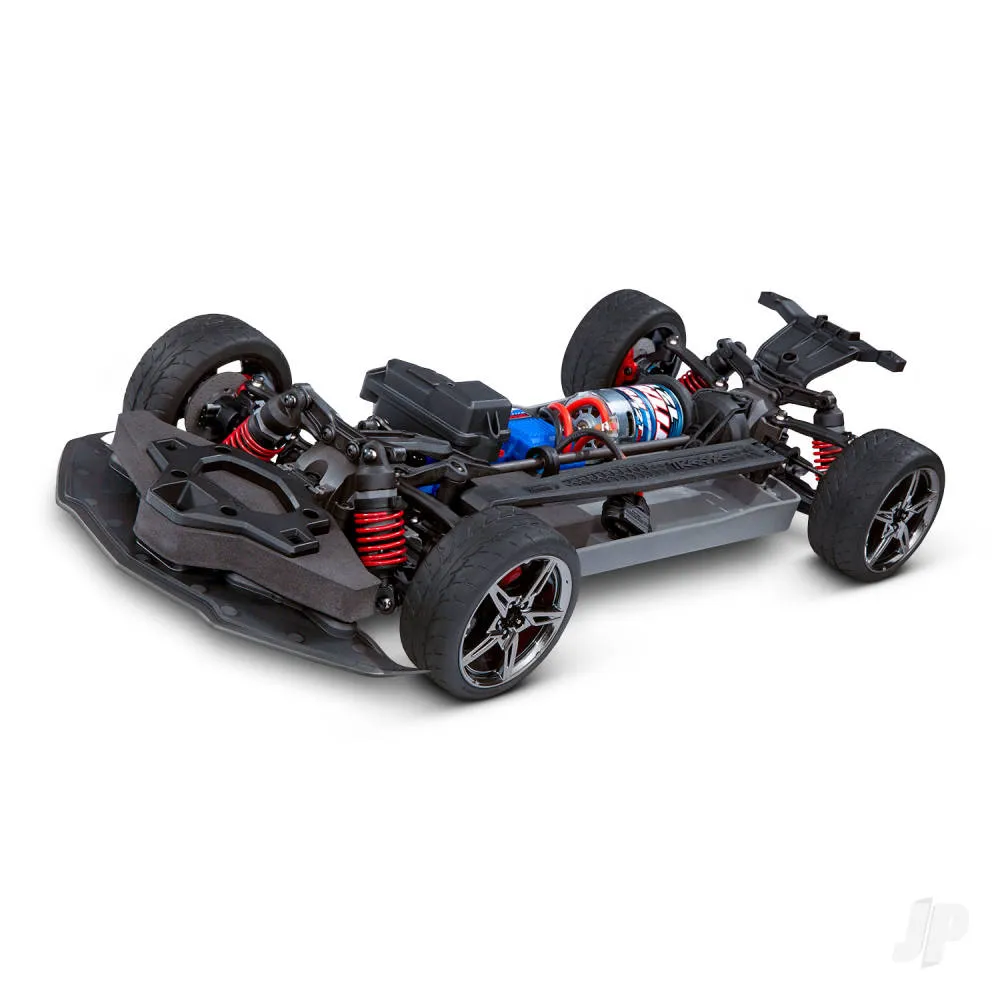

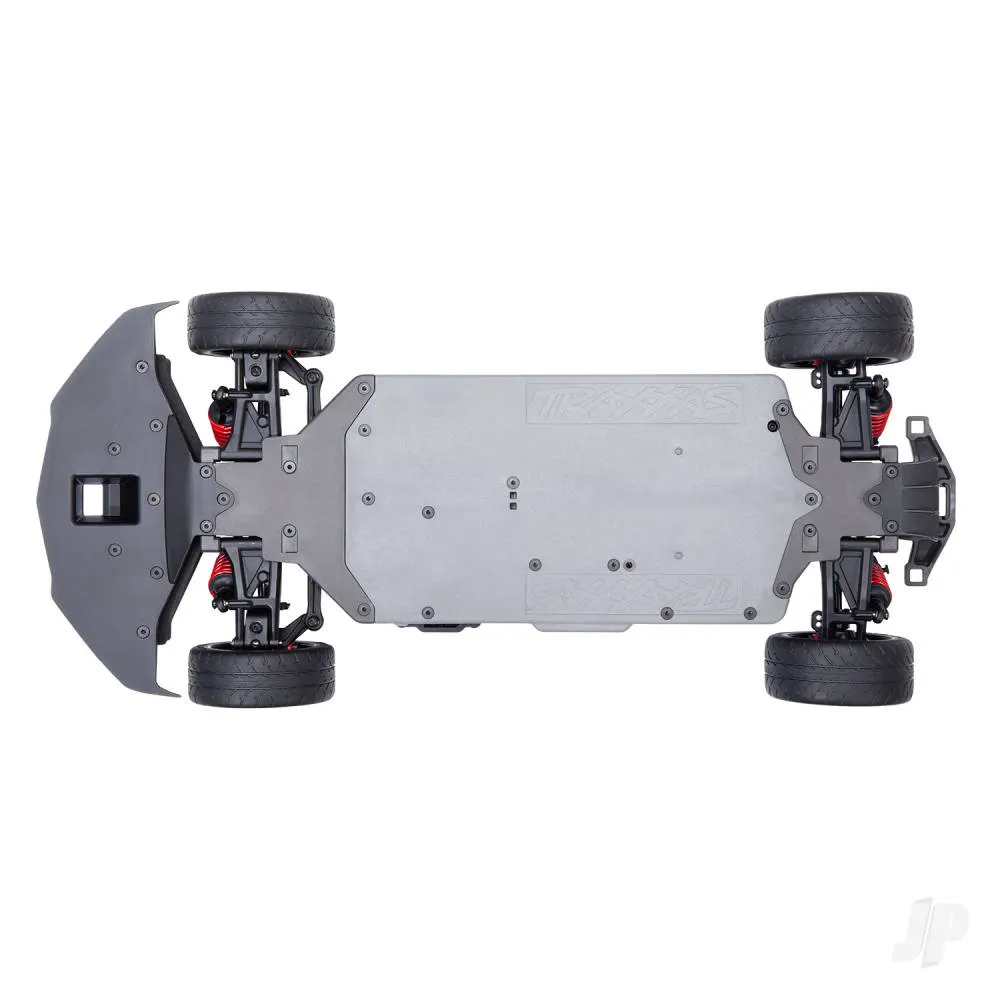

NEW LARGER 4-TEC 3.0 CHASSIS
The new 4-Tec® 3.0 chassis features a longer wheelbase and wider track developed specifically for the Corvette Stingray. In addition to ensuring accurate proportions, the longer, wider footprint improves stability and refines handling to deliver the steering precision and balanced feel of the mid-engine 'Vette.
NEW CLIPLESS BODY MOUNTING
The Stingray’s meticulously detailed shape is unmarred by out-of-scale posts or clips. Instead, an integrated quick-release system secures the body invisibly. The hidden mechanism delivers a secure hold, and releases in seconds to provide chassis access.

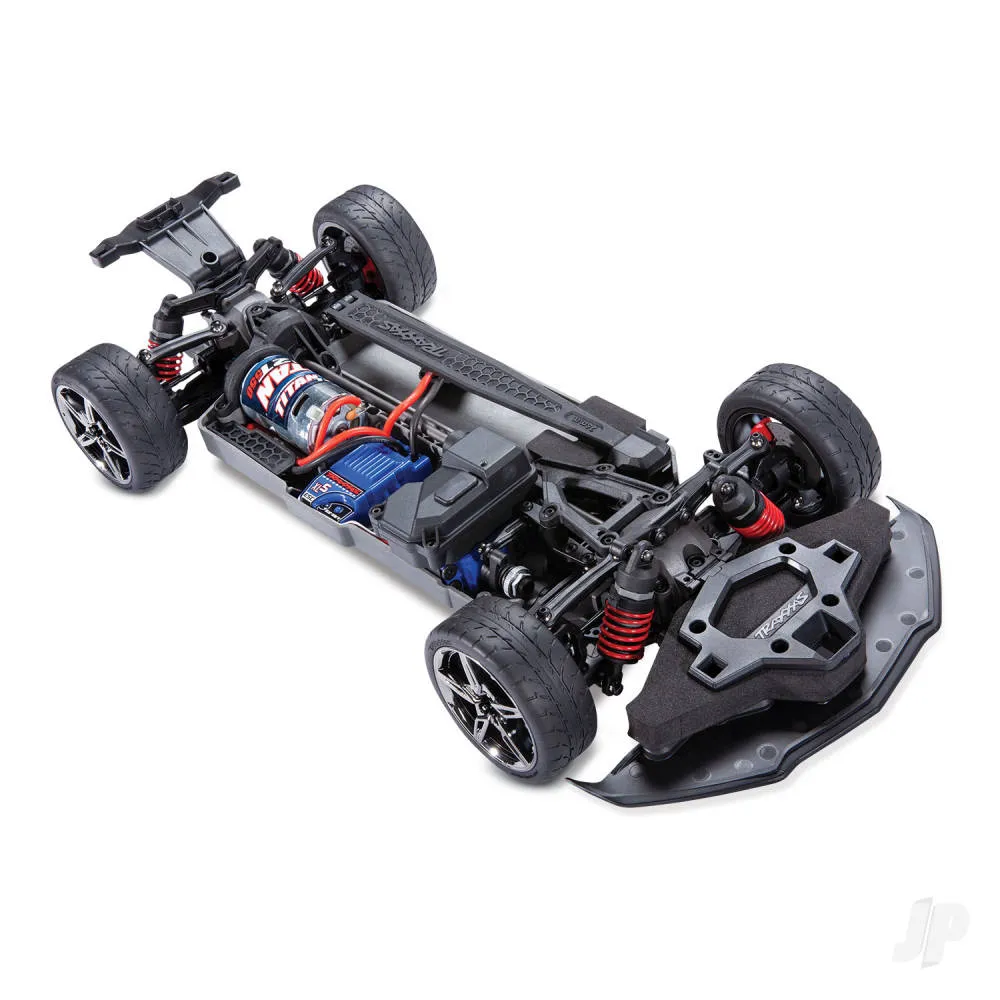

4-TEC 3.0
The 4-Tec platform’s new 3.0 spec is over 15% larger than the previous 4-Tec with an extended wheelbase, larger wheels and tires, and a wider track that enhances stability and handling. Proven Ultra Shocks deliver road-tuned handling with full adjustability.
NEW CLIPLESS BODY MOUNTING SYSTEM
No posts, no clips—just drop the body onto the chassis and snap into place for a perfect stance and secure hold. When you need to access the chassis, the body can be easily removed by depressing the tabs under the chassis and lifting up.
DISPLAY-GRADE DETAIL
Authentic body lines are just the start. The Traxxas Stingray goes deep on details with a realistic, three-dimensional engine bay, injection-moulded components, and light buckets ready to illuminate the road with optional LEDs.
ALL-WHEEL DRIVE
A highly efficient shaft driven all-wheel drive system rides on sealed bearings and provides maximum acceleration and responsiveness.
MODULAR SIMPLICITY
Rigid Traxxas modular design utilises three precision engineered modules to provide unprecedented stiffness and tight tolerances.
ADJUSTABLE BATTERY HOLD DOWN
A quick-release, dual-height battery mount accommodates a wide range of batteries including long format NiMH and LiPo battery packs.
WATERPROOF ALL-WEATHER PERFORMANCE
Race fearlessly in the rain and slide the Stingray on wet pavement for realistic “skidpad” driving—Traxxas waterproof electronics take splashes in stride.
2.1" REPLICA STINGRAY WHEELS
The Stingray’s larger 4-Tec 3.0 tires and detailed black-chrome wheels faithfully recreate full-size rims and rubber while providing improved stability and handling. The rear tires are wider than the fronts to fully fill the wide flanks and duplicate full-size car’s aggressive stance.
30+MPH TITAN POWER
High-torque and Traxxas tough, the Titan 550 motor and XL-5 speed control give the Corvette Stingray powerful acceleration on the way to 30+mph. Just starting out? Activate Training Mode to cut speed and power by 50%.
PRECISION 2.4GHZ CONTROL RADIO SYSTEM
With the TQ 2.4GHz radio system, you just switch it on and drive. There are no channels or frequencies to manage, so the focus is on having fun. The TQ’s ergonomic design is comfortable for all-day driving, and its sleek lines are enhanced by an internal antenna that is impervious to damage.
AVAILABLE LED LIGHTING SYSTEM
Take scale realism even further with vivid LED lighting! The optional headlight and tail light set (sold separately) is custom-fit for the Stingray and installs easily for amazing, authentic action after dark.
DETAILED REPLICA BODY

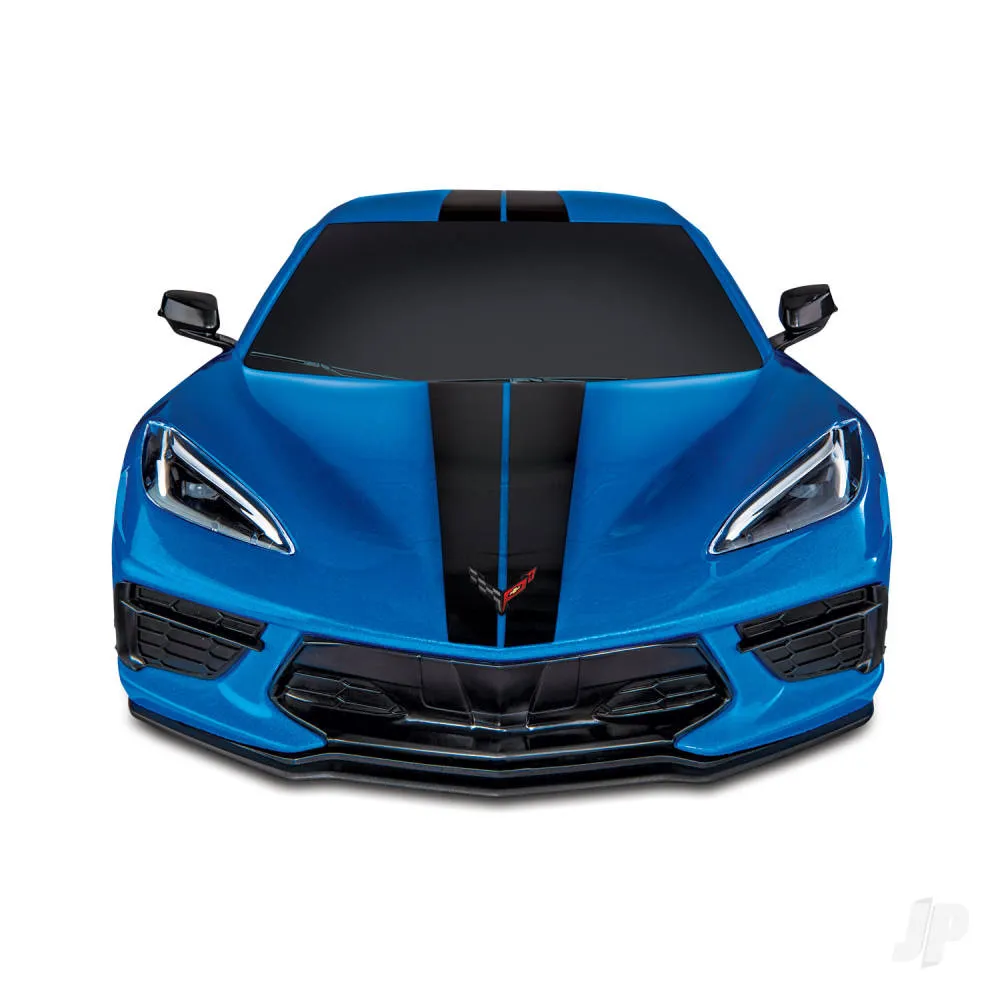

With 68 years of design history behind the new Corvette, it was important to capture every angle and line precisely. Traxxas meticulously recreates the new Stingray body with stunning accuracy. From injection-moulded inserts to the LED-ready lenses, Traxxas sets a new standard for scale RC detail.
NEW CLIPLESS BODY MOUNTING SYSTEM
The Stingray’s sculpted body incorporates mounts into the internal frame. There are no unsightly body posts to ruin the flow, just the sleek lines of the striking mid-engine Corvette. When it’s time to change the battery, just reach under the model to release the secure front and rear latches and the entire body releases in seconds.
REPLICA TIRES AND WHEELS
The Corvette’s larger 4-Tec 3.0 tires and detailed black-chrome replica wheels provide increased stability and improved handling. The replica brake discs incorporate standard 12 mm wheel hexes and feature red brake calipers. The brake calipers even switch from leading to trailing orientation to give your ride that fully authentic look.
OIL-FILLED ULTRA SHOCKS
4-Tec 3.0 rides on oil-filled Ultra Shocks utilising X-ring technology for a perfect seal and silky-smooth performance. They are fully tunable with a wide range of oils, springs, and pistons. Features include pressure bladders for air/oil separation and spring clips to precisely change the ride height and spring pre-load. Redesigned shock caps feature hollow balls for better articulation and durability.
HIGH PERFORMANCE SUSPENSION ADJUSTMENTS
The 4-Tec features a high angle steering option with separate mounting holes in the linkages. With minor modifications, high angle steering allows your Corvette Stingray to rotate further for epic drifting around corners. The high tech suspension also features bosses moulded into the arms to adjust droop. Suspension droop is the amount of downward travel on the wheels. Droop adjustment allows the 4-Tec 3.0 to be tuned for better stability in the corners.
INTEGRATED SERVO SAVER
Conventional servo savers earned a reputation for sloppy steering in on-road cars. The 4-Tec 3.0 incorporates the servo saver into the horn for precise and responsive handling in all situations. An integrated collar allows the spring tension to be adjusted for personalised settings or track conditions.
WATERPROOF RECEIVER BOX
Real world driving requires dealing with the elements. The 4-Tec 3.0 comes fully protected with a patented waterproof receiver box. The innovative receiver box keeps the micro receiver dry, even in the worst weather.
HIGH-TORQUE WATERPROOF STEERING SERVO
A high-performance car needs a powerful steering servo for responsive performance, and Traxxas delivers with the TRX2075 high-torque servo. This waterproof steering servo uses O-ring seals to keep the fun going when things get wet. Waterproof for all-weather action, the TRX2075 provides 125 oz-in of steering muscle.
MOULDED WIRE RETAINER
A simple wire clip would look out of place with this futuristic high tech chassis. Traxxas engineers designed a trick moulded wire retainer to keep wiring secured safely out of the way.
FIXED GEAR MESH SYSTEM
Setting the perfect gear mesh can be a complicated and arduous process. The Traxxas Corvette Stingray eliminates the hassle with its innovative fixed positioning system. Use the convenient chart included in the user manual to select the proper hole for your pinion gear.
HIGH-CURRENT CONNECTOR
The Traxxas iD® High-Current Connector funnels maximum power from your battery to the 4-Tec’s electronics. This innovative connector also enables your iD-equipped charger and battery to communicate. This ensures optimum charge settings specific to your battery for quicker, safer, more complete charging and extended battery life.
HEX HARDWARE
The 4-Tec 3.0 uses pro-quality, high-grade, metric hex-drive hardware throughout for extra strength and easy maintenance and repair. The black-oxide rust-resistant finish provides a high tech look and feel.
RUBBER-SEALED BALL BEARINGS
Precise rubber-sealed bearings offer super low-friction performance and maximum protection in dusty environments. These virtually maintenance free bearings are used in all exposed locations on the car.
ONE-PIECE DRIVESHAFTS
One-piece steel driveshafts save weight and send power directly to the wheels for lightning quick response times. Extended drive cups allow for maximum articulation and ultimate durability.
STEEL CENTRE DRIVESHAFT
4-Tec 3.0 distributes power to all four wheels through a one-piece centre driveshaft. There are no dogbones to wear and no drive cups to wobble. The steel driveshaft runs straight and true with a centre support bearing to handle the high RPM of Velineon brushless upgrades.
PROVEN SEALED DIFFERENTIALS
The 4-Tec 3.0 chassis features the same sealed, beveled-gear differential in the front and rear as the ultra-rugged Slash 4X4. Tune the performance by varying the viscosity of the fluid inside.
